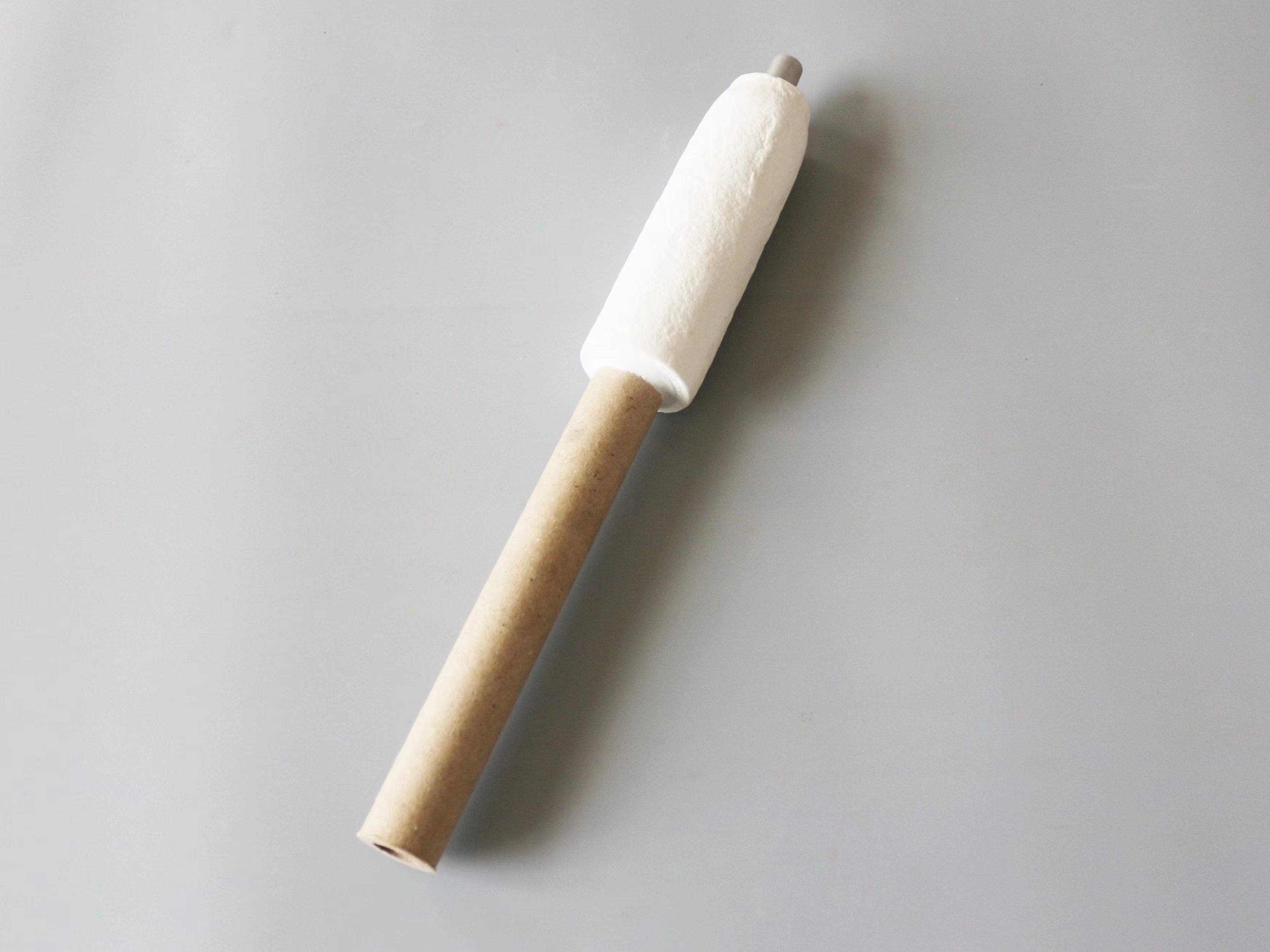

Single use thermocouple

Short Description:

Consumable fast thermocouple (temperature probe) is a temperature sensor designed for measuring the temperature of metal liquids in copper smelting, steelmaking and iron making processes (including electric furnaces, converters, refining furnaces, LF furnaces, oxygen blowing stations, ladles, molten iron bales, tundishes, etc.).

Accurate, precise and economical, single & multi reading thermocouples are available in many configurations, size and price range. All calibration type (S, R, B, D or C) are available with either IPTS 1968 or ITS 1990.


Product Detail

Product Tags

Various quartz length & fiber coating are available to suit each customer’s specific need. Our thermocouples can be used with most industrial standard hardware.

Specifications

Connector

Thermocouple type

Calibration

Cap

Paper tube

604

602

H

O

M

[S] 10: Pt10%Rh-Pt
[R] 13: Pt13%Rg-Pt
[B] 36: Pt30%Rh-Pt6%Rh
[D]:WRe3%-WRe25%
[C]:WRe5%-WRe26%
According to  YB /T 163-2008, IEC,584-1,NBS,JIS1981,AFNOR based on IPTS 68 or IPS 90 Fe: Steel  Al: Aluminum  Cu:Brass/Copper     Pl: Plastic

300mm

600mm

900mm

1200mm

1500mm

1800mm

Accuracy of wires (S/R): At Pd melting point 1554℃:±1℃

Measuring time:3 to 6 seconds

Maximum immersion time: 7 seconds at 1650℃

Application

Steelmaking, foundries, and copper etc…
